Reduces noise and fatigue in Offshore Wind Monopile Installation
PULSE® is an innovative add-on to the Hydrohammer®, designed to enhance noise mitigation during offshore monopile installations. It consists of two pistons in a housing with a column of fluid in between. This fluid-filled volume allows PULSE to control impact characteristics, reducing noise at the source and protecting marine life.
PULSE is a dampening system (add-on) positioned between a hydraulic hammer (Hydrohammer) and its anvil. It reduces noise significantly at source, supporting environmentally-friendly installation. PULSE was nominated for an Offshore Energy Award 2019 in the ‘Best innovation’ category.
Due to its positioning, PULSE can easily be combined with other underwater noise mitigating measures. One such is IQIP’s Integrated Monopile Installer, which directly mitigates noise by shielding the pile with a double-walled steel tube into which a bubble curtain can be fed. In most cases, the combination of those two systems would eliminate the need for a Big Bubble Curtain (BBC).
The liquid between the pistons can be filled or drained almost instantly. A PULSE system with maximum fluid (100%) between the pistons delivers optimal noise reduction. This volume can be adjusted steplessly down to PULSE 0%, corresponding to a conventional Hydrohammer. The ability to change stiffness instantly and continuously is key, eliminating the need for safety margins required by pre-set systems. PULSE ensures maximum noise reduction and optimal drivability, regardless of pile type, location, or soil conditions.

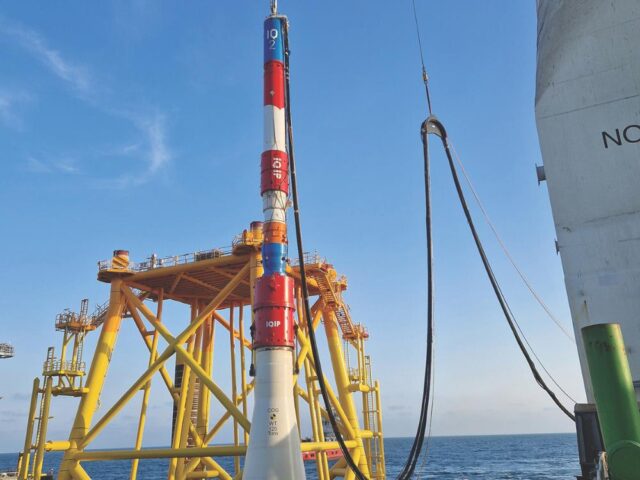

To date, the IQIP PULSE system has been successfully deployed in multiple offshore wind projects, including over 200 jacket pin piles and more than 200 monopiles.
IQIP is developing PULSE for all hammer sizes in Offshore Wind, Oil & Gas and Coastal & Civil markets. Modelling and results of applications are available for optional combination of PULSE and other mitigation techniques tailored for specific project conditions.
IQIP, at the forefront of innovation and experience, offers comprehensive support for the PULSE system, Hydrohammer, sleeves, hoses, umbilical, hydraulic winches, and powerpacks. Our service engineers are available 24/7 for support, maintenance, or spare parts for your Hydrohammer, either manually or remotely.
For more information about PULSE, please contact us.
Need to reduce noise during installation and comply with regulations despite increasing pile sizes and installation energy? Our PULSE technique has you covered!
For tailored advice, contact us today!
We know that your projects take place in challenging environments globally, and sometimes, you need the support and guidance of a partner. That’s why we are here to support you. We provide high-quality services all around the world with personal assistance through our 24/7 service for all our customers. It doesn’t matter what environment you’re working in, or where your project is located, we will be ready to help you and offer you a solution. This means that in case of a breakdown, our service team will be ready to provide you with the most appropriate solution.
In Europe, piling for offshore installations faces strict regulations to protect marine life from harmful underwater noise. These precautions are vital but they also make building more challenging and costly. At IQIP, we believe progress shouldn’t come at the expense of nature. That’s why we’ve developed innovative technologies to safeguard sea life while giving you the freedom to build efficiently. Our solutions expand your installation window, reduce costs, and help you meet environmental commitments without compromise. Watch this video for more information on noise mitigation challenges and solutions.
