Driving down monopiles using a contained water mass

Noise Mitigation 2048x2048 2

NOISE REDUCTION

Simulations using finite element modelling show a significant reduction in sound exposure levels as well as sound pressure levels compared to conventional hammers.

verified user white 48dp 01

ENVIRONMENTALLY SAFE

With EQ-Piling technology, monopiles can be installed safely for marine life without the need for further noise mitigation measures, such as big bubble curtains, in most locations.

thumb up white 48dp 01

INSTALLATION BENEFITS

Pile fatigue is reduced by up to 60%, allowing pre-installation of secondary steel fixings.

trending up white 48dp 01

FUTURE PROOF

Not limited to a certain anvil or ram weight size, EQ-Piling can cope with even larger monopile diameters and weights in future.

WHAT IS EQ-PILING

Prolonged energy transfer for reduced noise at the source

As the next generation of ‘at the source’ noise mitigation, EQ-Piling leverages decades of experience with conventional impact hammers and near-field noise reduction techniques.

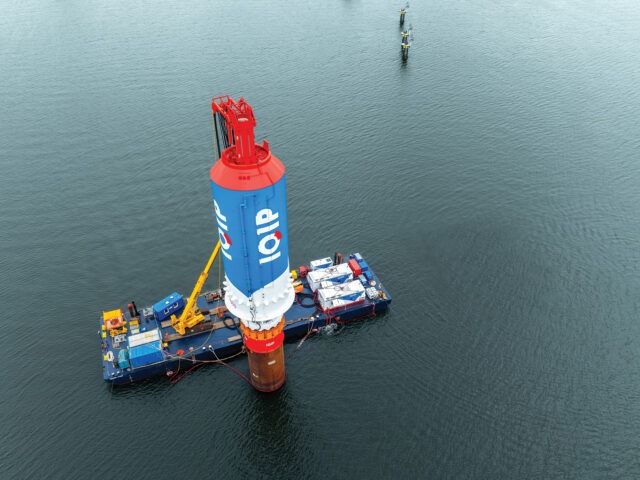

EQ-Piling utilizes a large water tank as a drop weight. This tank, containing up to seventeen hundred tons of seawater, is raised by hydraulic cylinders and released from the drop height setpoint.

The water tank falls onto buffer cylinders which transmit the impact force onto the pile, dampening it to extend the impact time. This impact time is 15 -20 longer than that of conventional piling, resulting in a smooth energy transfer to the monopile and significantly reduced noise levels.

EQ Piling 1 1

Pile driving techniques

The factor ‘time’ is what enables striking a balance between drivability and noise mitigation.

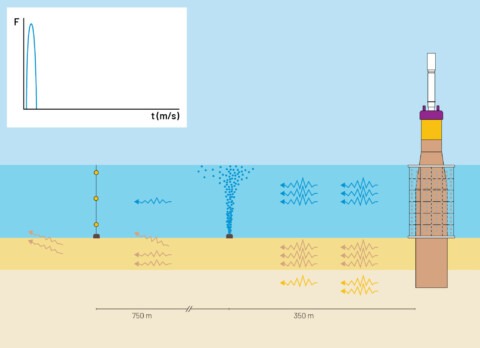

Conventional Piling noise

Conventional piling

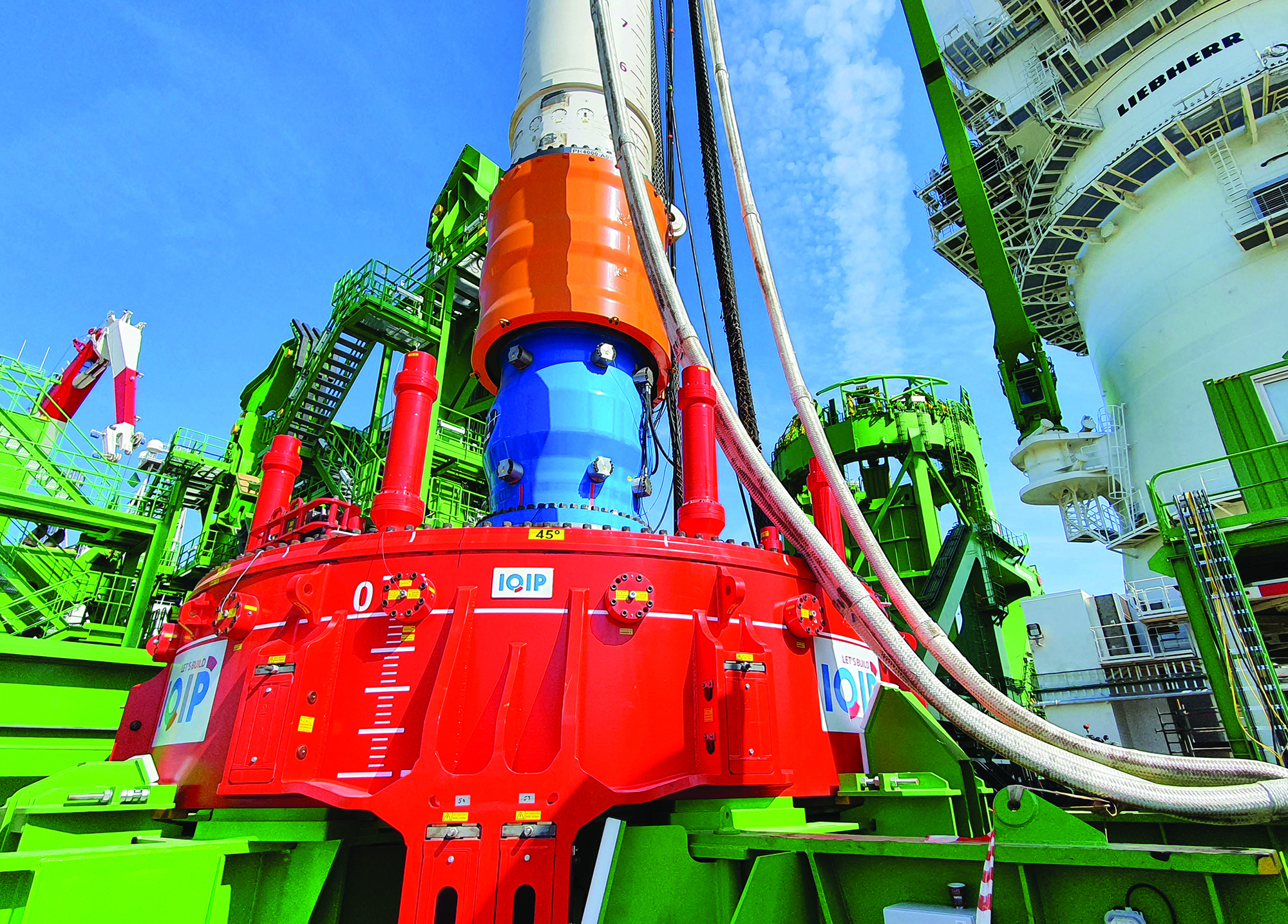

IQ serie noise

IQ-series with PULSE®

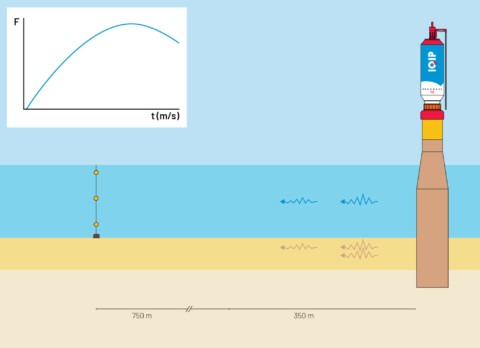

EQ serie noise

EQ-series

Reduced noise and cost, easier installation

EQ-Piling ensures safe installation for marine life, meeting environmental regulations without additional noise mitigation measures. Simulations using finite element modelling show a significant reduction in sound exposure levels as well as sound pressure levels compared to conventional hammers.

Pile fatigue is reduced by up to 60%, allowing pre-installation of secondary steel fixings. No or less noise mitigation measures means lower foundation & installation project costs, and fewer risks, such as project interruptions, and cuts CO2 emissions and energy consumption by minimizing vessel use. Potential cost reductions include optimizing monopile wall thickness.

EQ-Piling adapts to larger monopile diameters and weights, addressing challenging soil conditions where traditional noise mitigation is less effective. This ensures compliance with underwater noise regulations in diverse environments.



EQ Piling 2 1

FREQUENT ASKED QUESTIONS

EQ-Piling offers a comprehensive, efficient, and environmentally friendly solution for monopile installation. Install the biggest monopiles, while reducing noise at source during installation, and ensuring compliance, cost savings, and adaptability for future projects. Let us help engineer your success by offering solutions that exceed industry standards.  For tailored advice, contact us today!

Is EQ-Piling suitable for my project?

Are you looking for a way to install the increasing sized monopiles, while reducing noise at the source during installation? Our EQ-Piling technology got you covered. For a tailored advice do not hesitate to contact us!

We know that your projects take place in challenging environments globally, and sometimes, you need the support and guidance of a partner. That’s why we are here to support you. We provide high-quality services all around the world with personal assistance through our 24/7 service for all our customers. It doesn’t matter what environment you’re working in, or where your project is located, we will be ready to help you and offer you a solution. This means that in case of a breakdown, our service team will be ready to provide you with the most appropriate solution.

Piling for offshore installations in Europe is restricted by precautionary regulations for underwater noise and its effect on sea life. This limitation during construction increases the cost price. IQIP has found a way for you to enlarge your installation window and reduce costs with innovative technology for effective noise mitigation. For more information on noise mitigation challenges and solutions see this video. Noise mitigation challenges and solutions in Offshore Wind – YouTube

Curious? Please do not hesitate to contact us!
