Slotted Frame

To support and orientate free standing impact driven piles on the seabed

Pile ranges

24” – 96”

Diameter with larger ranges available

Mudmats sizes

12 – 18

Meters

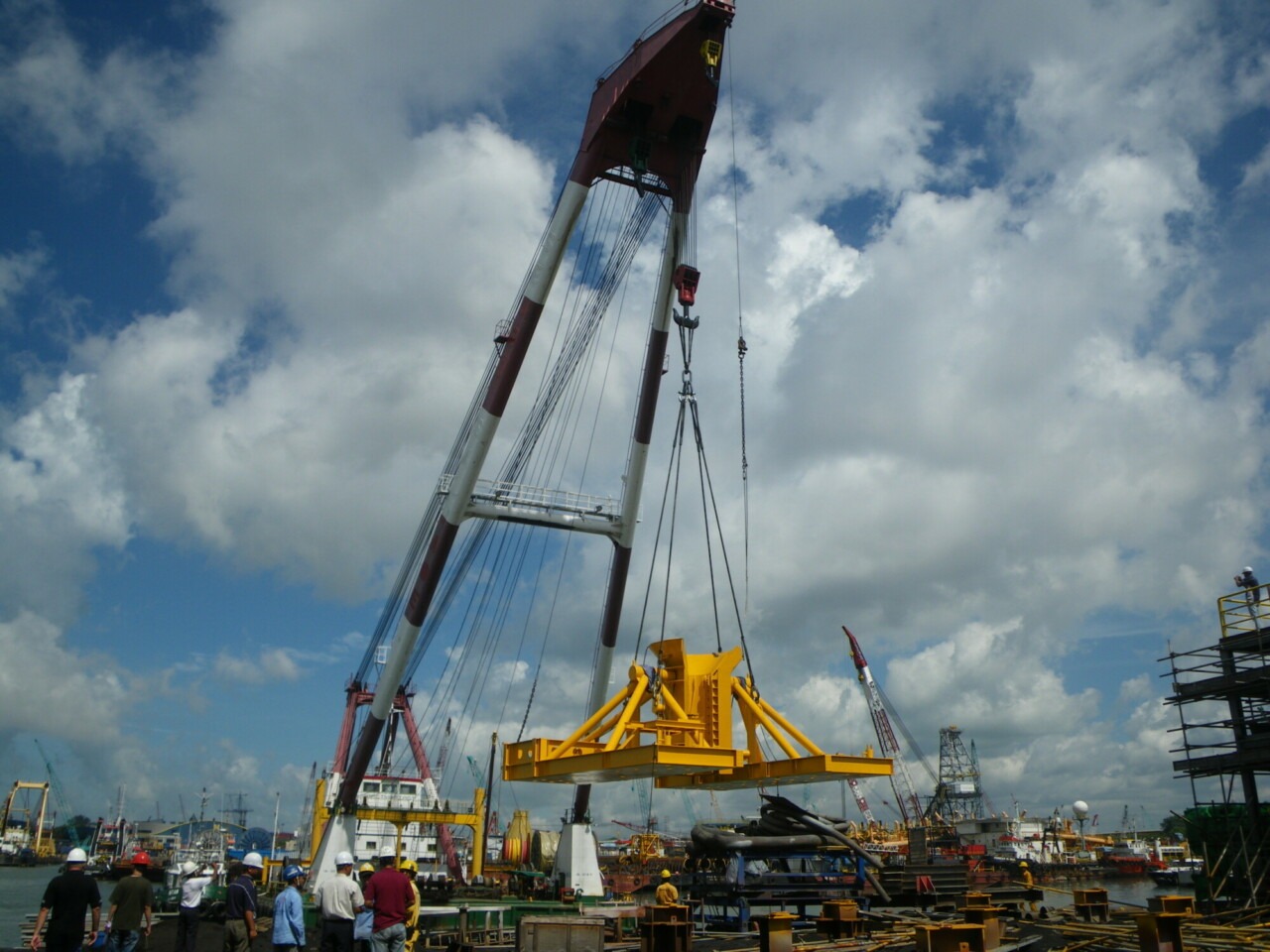

72 inch Slotted Frame mobilised from Singapore storage facility 2009

Low pile padeye compatible

Light weight and Low lift height

Basic function and cost effective

Accurate pile orientation

What is the slotted frame?

The slotted frame is designed for short piles and low padeye positions. It allows pre-attached padeyes and chain to be used with the frame and is adaptable for multiple pile diameters without recovering back to deck, by its leight weight. Currently, the slotted frame is available for a pile range from 24″ – 96″ diameter and for sleeve inserts for installing multiple sized piles. The mudmasts sizes from 12 to 18 meters.

72 inch Slotted Frame in 48 inch mode with 48 inch pile overhead

Applications

The Slotted Frame can be applied in the following ways.

Anchor arrays including the FPSO, FSO and FLNG
Single point moorings for Offshore Loading Systems
Riser and mid-water arch anchors
Pipeline inclinations and Conductor pre-installation
Accurate pre-driven installations for wind farm jackets, test piles and anemometer masts

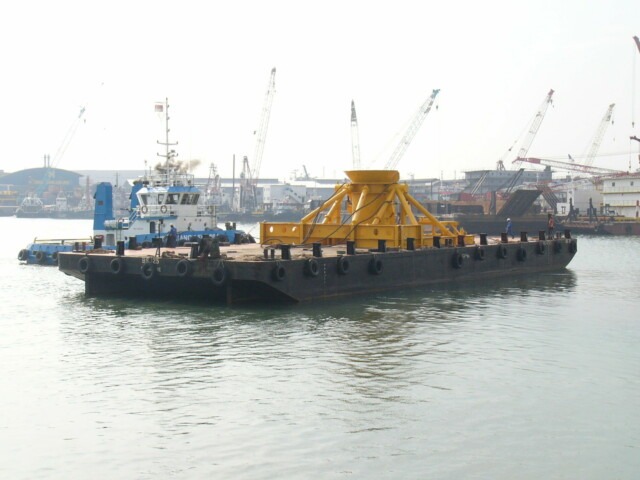

96 inch Slotted Frame in 72 inch model mobilised for Kitan project

What is in the slotted frame for you?

Our Slotted Frame is globally available, and the Pile orientation system allows up to 140° alignment window. Additionally, the slotted frame operates in all water depths, offers a ROV friendly interaction and offers a digital inclination meter for the seabed slope.
