Transition Piece Lifting Tool

Vertically lift transition pieces and jackets

Adjustable diameter range

4,500 – 7,000

Millimeter

Working Load Limit

4,00 – 1,200

Tonnes

Combination with Combi Lifting Spread

The Transition Piece Lifting Tool can be used in combination with the Combi Lifting Spread for extra efficiency.

Safe & Efficient

Connects easily with the socket on top of the tool and lifts the tool without the need of riggers, shackles or slings.

What is the Transition Piece Lifting Tool?

No need for riggers, shackles or slings

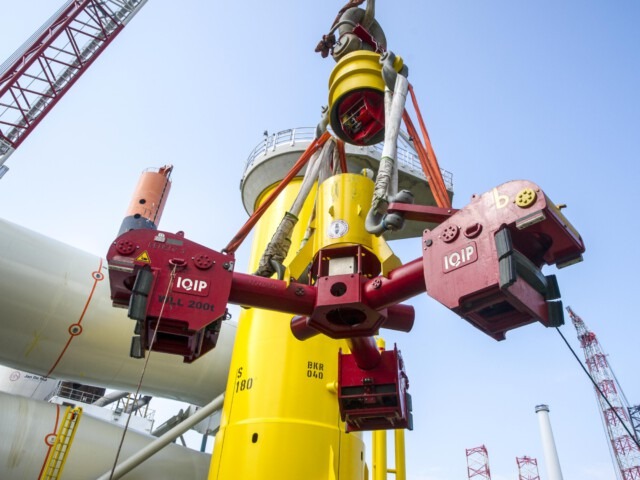

The Transition Piece Lifting Tool lifts transition pieces vertically and has multiple ranges with the capability of handling the largest units for the biggest turbine monopile foundations in the world.

It can be used in combination with the Combi Lifting Spread, lifting equipment that consists of multiple installation tools, that can be used for foundation installations. The main piece of the spread, the Lifting Connector, connects easily with the corresponding socket on top of the tool and lifts the tool without the need of riggers, shackles or slings. This increases the safety and efficiency on board.

“We have developed a tool, that can lift and install your transition pieces in a safe and efficient way.”

Technical Director

Safe & efficient installation

The Transition Piece Lifting Tool lifts transition pieces safely, while no human interaction is needed during the installation procedure. The tool is remotely operated via a wireless connection and does not need personnel who attach shackles or bolts to the transition pieces. This also increases the efficiency while the tool can make a quick connection with the flange. With the quick and safe connection and disconnection of the tool we increase the safety and efficiency at your offshore wind project.

Specifications and advantages

Specifications	Advantages
Adjustable to any diameter within our range (4,500 – 7,000 mm)	No markings on pile / flange transition piece
Working load limit (WLL) 400 – 1,200t	Extensive track record
Available for rent	Remotely wireless operated
Air temperature -10°C to +45°C	Increase efficiency and safety
Sea temperature 0°C to +35°C	Fail safe lifting connection
Integrated Power Pack	Combination with Combi Lifting Spread
Proximity switches
Integrated back ups

How does The Transition Piece Lifting Tool work?

The Transition Piece Lifting Tool, stabs in to the flange and connects easily by extending the latches underneath the flange. In this way, we create a fail safe connection that can lift transition pieces without markings on the flange which makes sure the wind turbines can be placed safely.

After the connection, transition pieces can be lifted and placed directly on the monopile. When the transition piece is placed, the tool can be disconnected easily. The quick connection and disconnection of the tool safes time, while there is no need for personnel to apply and remove bolts or shackles.

Frequent asked questions

Is the Transition Piece Lifting Tool suitable for my project?

At IQIP, we believe in efficient and safe installations of your foundations at your offshore wind project. For this reason, we have developed a tool, that can lift and install transition pieces in a safe and efficient way. The Transition Piece Lifting Tool lifts transition pieces vertically and has multiple ranges with the capability of handling the largest units for the biggest turbine monopile foundations in the world.

For a tailored advice do not hesitate to contact us!

Does IQIP also offer support services?

We know that your projects take place in challenging environments globally, and sometimes, you need the support and guidance of a partner. That’s why we are here to support you. We provide high-quality services all around the world with personal assistance through our 24/7 service for all our customers. It doesn’t matter what environment you’re working in, or where your project is located, we will be ready to help you and offer you a solution. This means that in case of a breakdown, our service team will be ready to provide you with the most appropriate solution.c
