What is the fast frame?

The Fast Frame is designed for efficient, safe and vertical installation of piles at any water depth. It piles within a range of 20” to 144” and can be installed with an accuracy of 0.1 degrees. It has a levelling system and a fully automatic sleeve release system. The Fast Frame is equipped with a bulls eye and digital inclinometer.

Furthermore, the rigging is certified according DNV 2.7-3. Optional the fast frame can be equipped with extended mudmats and/or a mudmat folding system.

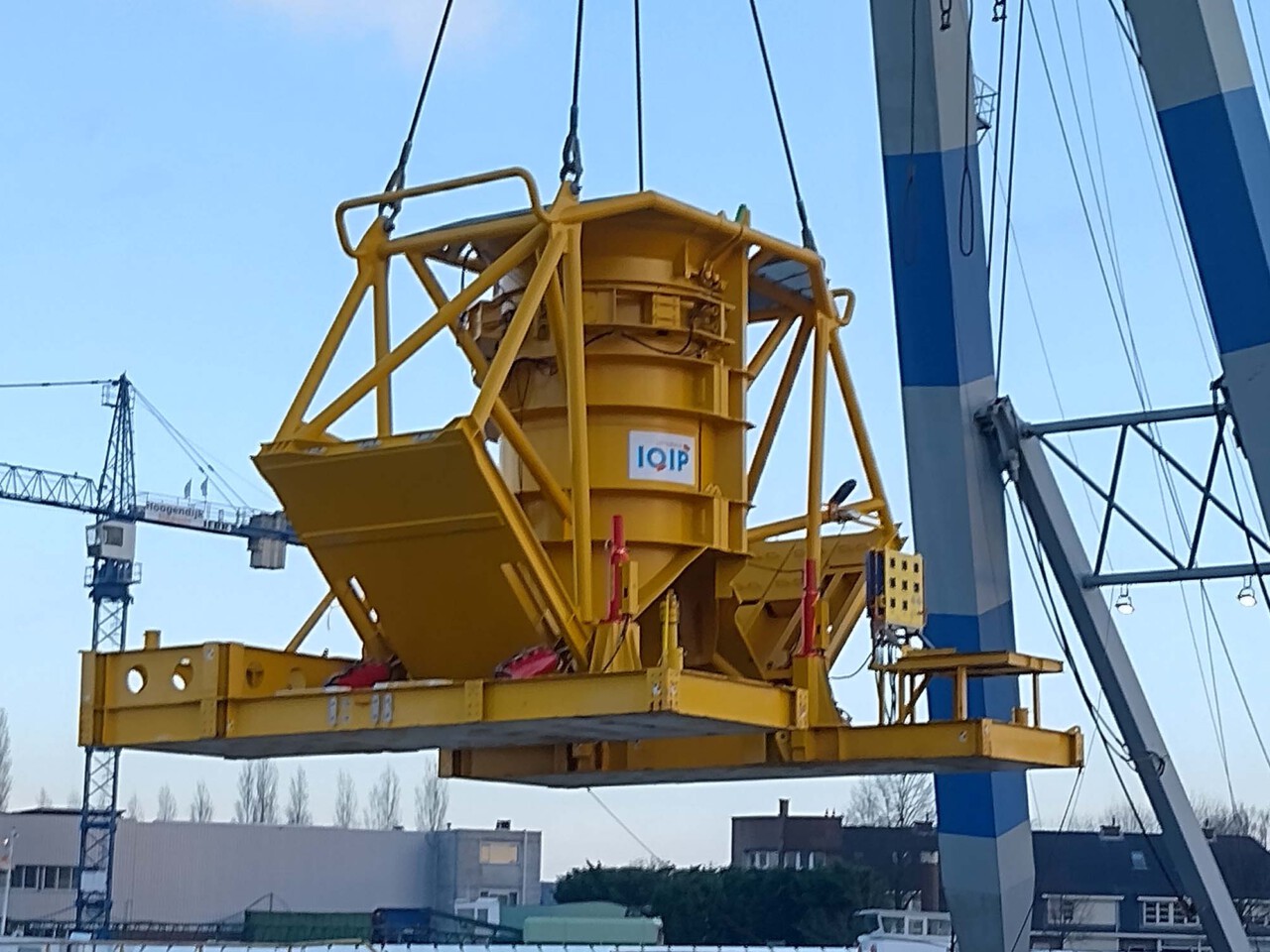

Fast Frame IQIP

FAST FRAME APPLICATIONS

The Fast Frame can be operable in the following ways.

  • FPSO, FSO and FLNG anchor arrays
  • Single Point Moorings for Offshore Loading Systems
  • Riser and mid-water arch anchors
  • Pipeline initiations and Conductor pre-installation
  • Accurate pre-driven installations for wind farm jackets, test piles and anemometer masts

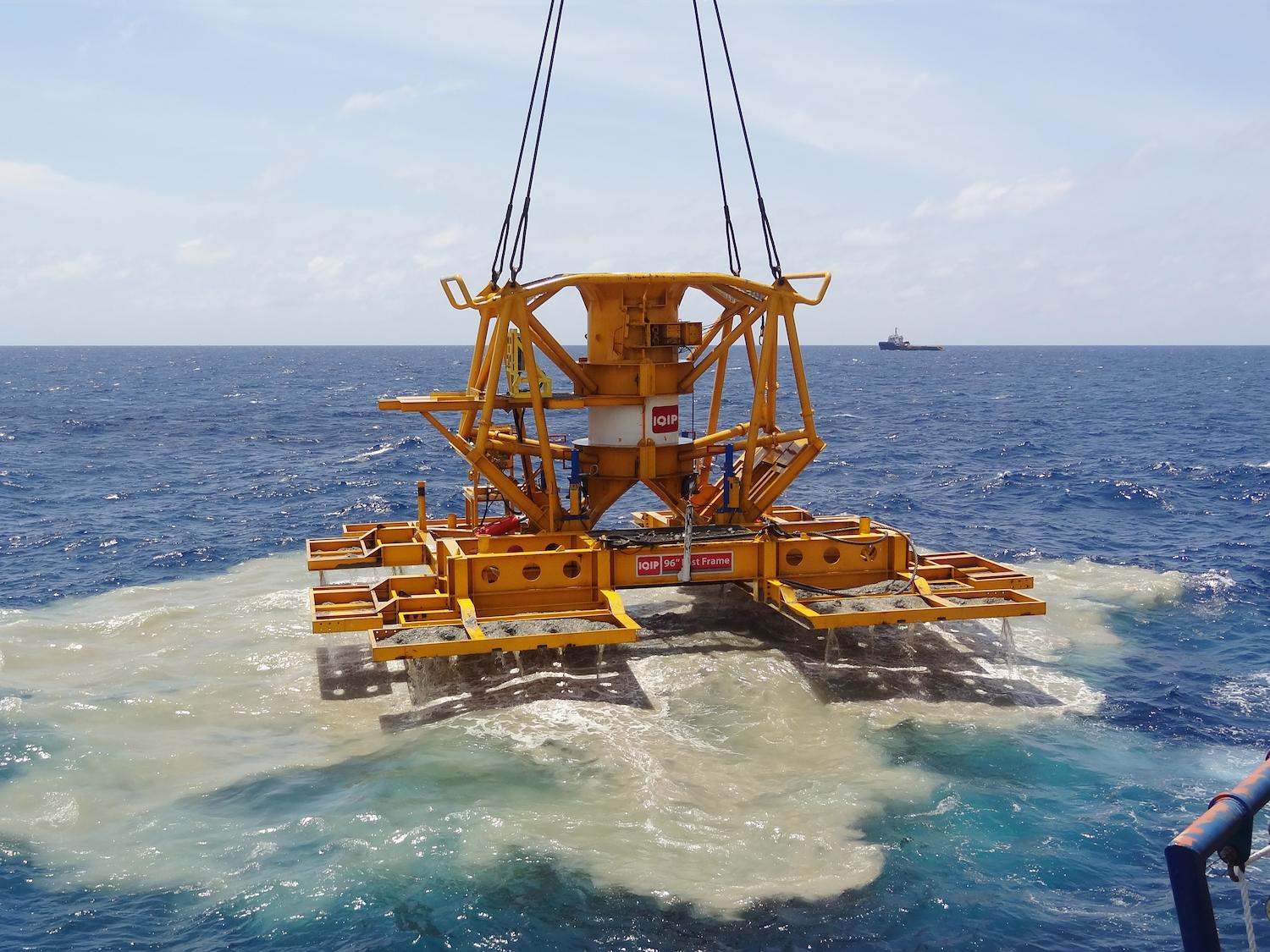

FastFrame 1

What is in the Fast Frame for you?

  • Pile orientation system allows an alignment window and maintains orientation and verticality until adequate soil holding is achieved
  • Sleeves are triggered open by the pile without the need for ROV intervention
  • Proven levelling system caters for up to maximum 5° inclined seabed
  • Allows for protruding pile ancillaries to travel through the frame
  • Frame can be used without followers
  • Transponder locations at the fast frame
