What is Flanged Jacket Lifting Tool?

The Flanged Jacket Lifting Tool is a tool that is specifically designed to lift jackets or other structures that are equipped with a vertical connection flange. It is mostly used in the offshore market, where it can lift the jackets and structures in the most safe, efficient and cost-effective way.

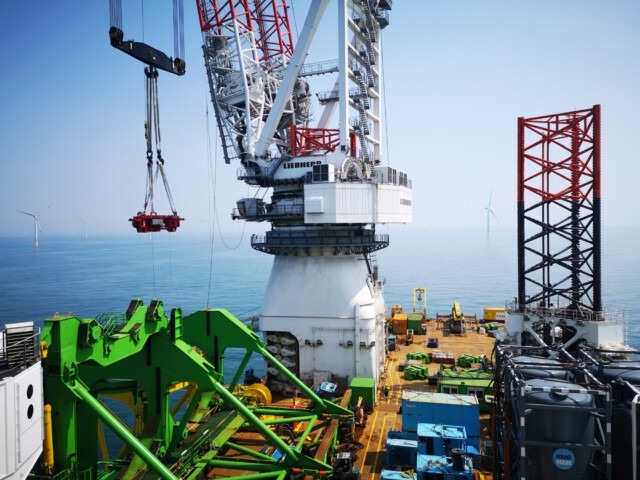

Geosea FJLT

How does Flanged Jacket Lifting Tool work?

The Flanged Jacket Lifting Tool lifts jackets or other structures by connecting with the connection flange. During the installation procedure, the tool stabs directly in to the connection flange and connects by placing the latches underneath and above the flange ring. This results in a quick and fail-safe connection without the need of secondary steel or compromising the integrity of the connection flange. After this procedure, the jacket or structure can be lifted and placed at the requested position.

Flanged Jacket Lifting Tool 2

Why is this tool the most suitable for your project?

SAFE AND COST-EFFECTIVE LIFTING

The Flanged Jacket Lifting Tool is equipped with IQIP’s innovative fail-safe principle, which means that mechanical load that is applied on the tool in a longitudinal direction results in a transversal force on the flange which creates the ‘locking / fail-safe’ connection. Besides, the tool can be remotely operated using the integrated Power Pack, which eliminates direct human contact during the installation procedure and increases safety on board.

Flanged Jacket Lifting Tool is also a cost-effective tool, since there is no need to add secondary steel to the jackets or structures, which will reduce the costs of the installation. The tool can install the jackets or structures efficiently, resulting in reduced installation time.

SPECIFICATIONS

  • Outside flange diameter range 5,500 – 7,000 milimeters
  • Working load limit (WLL) up to 1,700 tonnes
  • Certified and designed according Lloyds Lifting Appliances
  • Wireless remotely operated using integrated Power Pack
  • 3-arm lifting tool
  • Reduced bending stress in pile regard to conventional lifting principle
  • Minimal penetration in jacket



Let’s build together and work on your next project

Let’s lift your jackets or structures together in a safe and efficient way! Are you interested in Flanged Jacket Lifting Tool? Please, do not hesitate to contact us. We are more than happy to support you with our guaranteed expertise and innovative equipment.

VERTICAL LIFT OF JACKETS

Frequent Asked Questions

Does the Flanged Jacket Lifting Tool fit my project?

Are you looking for a tool designed to lift jackets and other structures? The Flanged Jacket Lifting Tool could be the perfect option to you. It is equipped with a vertical connection flange and most often used in the offshore market, where it can lift the jackets and structures in a safe, efficient and cost-effective way.

For a tailored advice do not hesitate to contact us.
