Leveling Jackets, Templates and Offshore Structures

Fleet from 200T TO 3,000T

Levelling Tools are used to level jackets, templates and offshore structures. We offer a fleet of Levelling Tools starting from 200t to 3,000t. The tools are available for rental and purchase.

Range

The range for subsea Levelling Tools are between 1,600t to 3,000t and supports pile ranges of 72’’ to 102’’. For above water use 200t, 800t and 1,600t units are available that is adjustable for all pile diameters.

Easily combined with Jacket Pile Grippers

Jacket Pile Grippers and Levelling Tools can be combined easily for a complete workable solution. With our extensive track record and proven technology, we can provide you with exactly the right solution and help you optimise your operations.

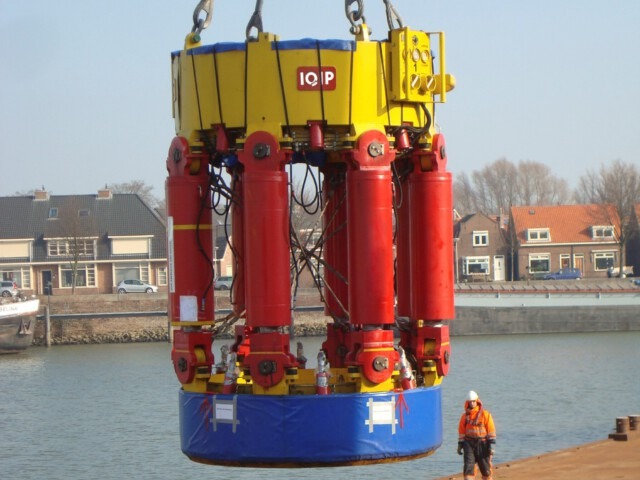

Levelling Tool 1 1

Fail safe principle

The Lifting Tool is equipped with IQIP’s innovative fail safe principle: Mechanical load applied on the tool in longitudinal direction results in a transversal force on the pile which creates the ‘locking / fail safe’ connection. Besides that, the Leveling Tool is Certified and designed according Lloyds Lifting Appliances.

Leveling Tool 3

Specifications

1600T – 3000T
Subsea levelling tool
Leveling capacity 1600t – 3000t
Pile range 72” – 102”
Guide cone requires an integrated rolled vertical ring only to facilitate levelling tool
Levelling tool operates independent from pile stick up
Operates in combination with a Jacket Pile Gripper
Free orientation during installation of tool
200T – 1600T
Above water and subsea use
Leveling capacity 200t / 800t / 1600t
Adjustable to all pile diameters
Stroke 1000mm / 1800mm
Emergency release via hot-stab (ROV)
Stick-up height variable
Recommended to operate in combination with a Jacket Pile Gripper during subsea leveling
Connects with pile guide / catcher plate in subsea use
No special preparations to jacket/template structure are required
Connects with jacket pad eye in surface use
