Developed for the large offshore wind turbine foundations of today and tomorrow.
Up to 6,600 kJ of energy driving the next generation of larger monopiles.
Continuous 100% capacity operation that can be boosted to 120% depending on soil conditions.
Extended duration of each hammer blow reduces underwater noise, pile fatigue, and environmental disturbance.

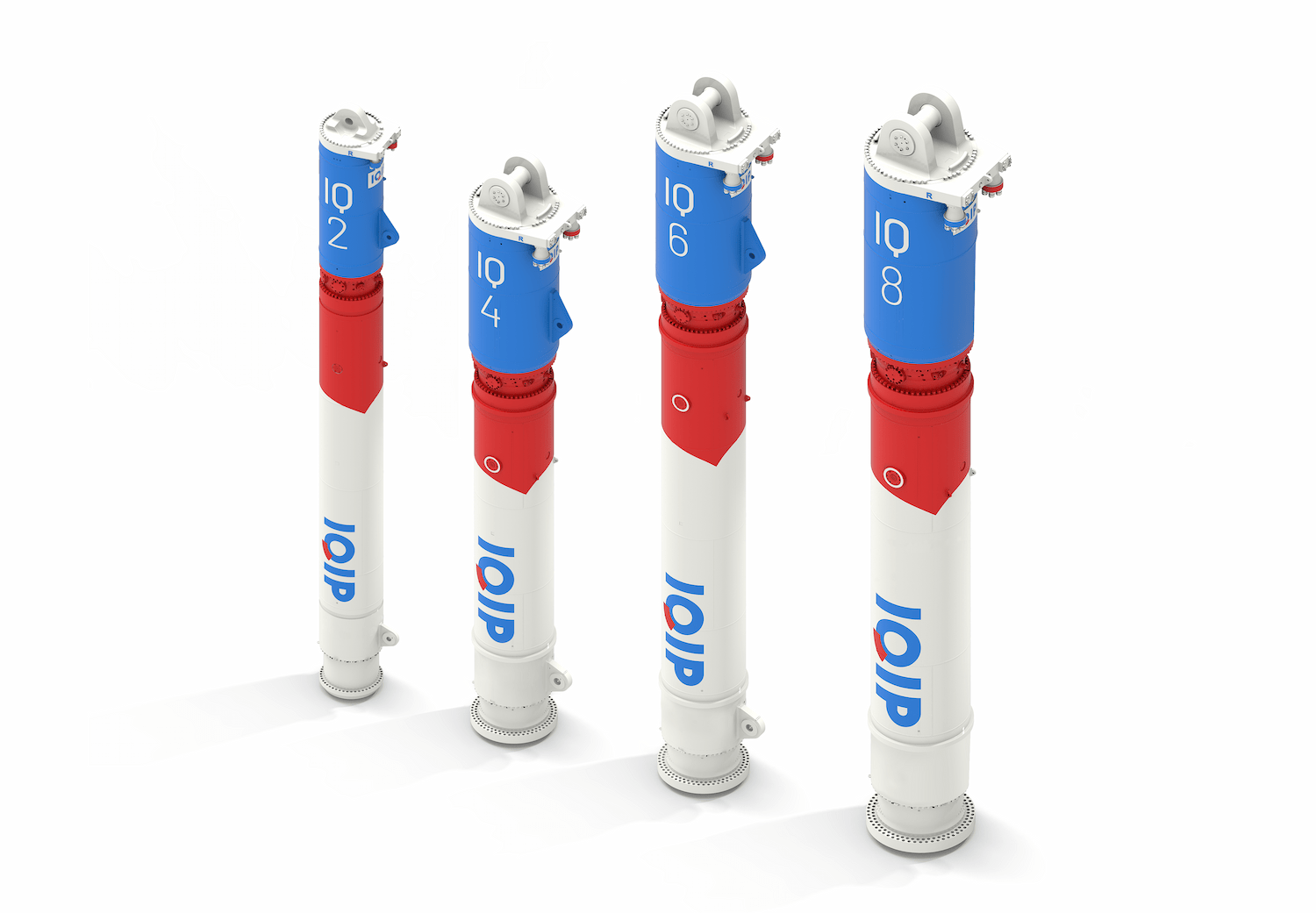

The IQ-series offers intelligent, efficient, precise pile-driving solutions designed to meet today’s offshore wind construction challenges. Our hydraulic hammers are capable of operating continuously at 100% energy capacity, boosting power to 120% for periods when soil conditions demand it. This adaptability ensures optimized pile driving for stable, long-lasting foundations.
| IQ2 | IQ4 | IQ6 | ||
|---|---|---|---|---|
| Max. blow energy | kNm (kJ) | 3600 | 4800 | 6600 |
| Min. blow energy* | kNm (kJ) | 382 | 397 | – |
| Blowrate | bl/min | 35 | 36 | 38 |
| Weight, Ram | ton | 150 | 200 | 275 |
| Weight, Hammer | ton | 290 | 430 | 525 |
| Length, Hammer | mm | 20755 | 20410 | 23560 |
| Oil flow | l/min | 5100 | 6600 | 9900 |
| Power pack type, preferred | O.R. | O.R. | O.R. |
