S-series Hydrohammers: deployed onshore and offshore worldwide since the early eighties.
Models range from S-30 to S-2000, with energy capacities from 30kJ to 2000kJ.
Drive sheet piles by using sheet legs; enhance tube pile alignment and impact with sleeves.
Easy installation of vertical as well as inclined (raked) piles.
Since the early 1980s, IQIP’s hydraulic impact hammers have been synonymous with reliability, delivering exceptional results in sectors such as onshore construction, oil & gas, and offshore wind. The IQIP Hydrohammer® S-series continues this legacy with cutting-edge engineering and adaptability to extreme environments.
The S-series sets the standard for pile driving precision and performance, offering versatility to tackle even the most demanding projects.
• The S-series adapts seamlessly to different pile requirements.
• Tailored sleeves ensure perfect tube pile alignment and impact
• Sheet legs enable the driving of profiles such as single and double sheet piles, H-beams, and combi walls
Built on decades of field-hardened technology, the Hydrohammer® S-series combines proven reliability with innovative engineering, consistently delivering efficiency and precision in the field.
| S-30 | S-90 | S-150 | S-280 | S-350 | ||
|---|---|---|---|---|---|---|
| Max. blow energy | kNm (kJ) | 30 | 90 | 150 | 280 | 350 |
| Min. blow energy* | kNm (kJ) | 3 | 9 | 15 | 31 | 39 |
| Blowrate | bl/min | 65 | 46 | 44 | 45 | 40 |
| Weight, Ram | ton | 1.5 | 4.5 | 7.5 | 14 | 18 |
| Weight, Hammer | ton | 4 | 10 | 16.5 | 31 | 36 |
| Length, Hammer | mm | 6100 | 8168 | 8986 | 10390 | 11384 |
| Oil flow | l/min | 175 | 250 | 460 | 700 | 700 |
| Power pack type, preferred | P 250 | P 250 | P 460 | P 700 | P 700 |
| S-500 | S-800 | S-1400 | S-2000 | ||
|---|---|---|---|---|---|
| Max. blow energy | kNm (kJ) | 500 | 800 | 1400 | 2000 |
| Min. blow energy* | kNm (kJ) | 50 | 88 | 154 | 220 |
| Blowrate | bl/min | 45 | 45 | 35 | 35 |
| Weight, Ram | ton | 25 | 40 | 70 | 100 |
| Weight, Hammer | ton | 60 | 85 | 150 | 230 |
| Length, Hammer | mm | 11943 | 14535 | 14945 | 17370 |
| Oil flow | l/min | 1600 | 2200 | 3300 | 4400 |
| Power pack type, preferred | O.R. | O.R. | O.R. | O.R. |
Pipes and piles are typically driven vertically, but specific projects might require raked or horizontal driving. Hydrohammer’s unique design, relatively light weight, and hydraulically driven, gas-accelerated ram weight, allow it to operate at any angle – even fully horizontally.
A specially designed chisel set transforms the Hydrohammer® into a highly efficient rock breaker. Deliver the impact force required to break rock, cemented layers, concrete floors, and slabs.

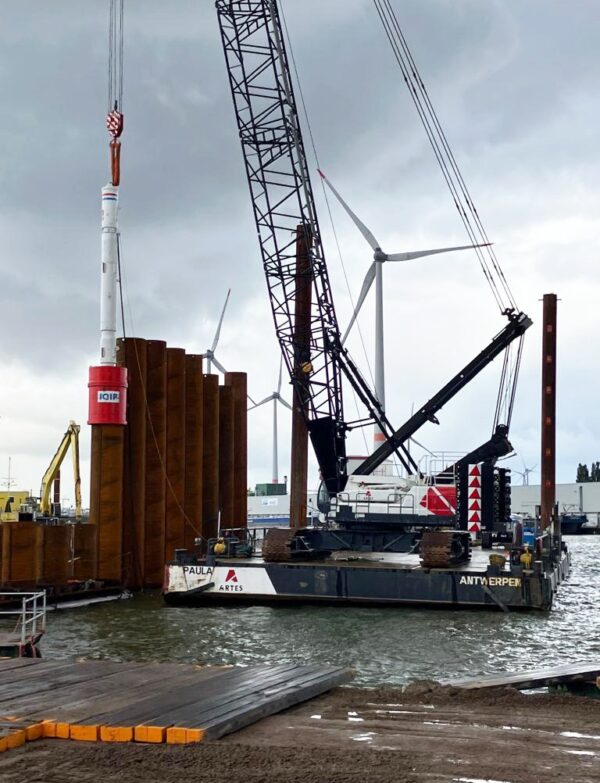

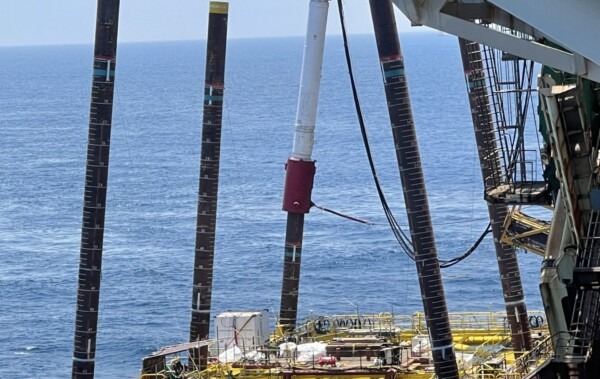

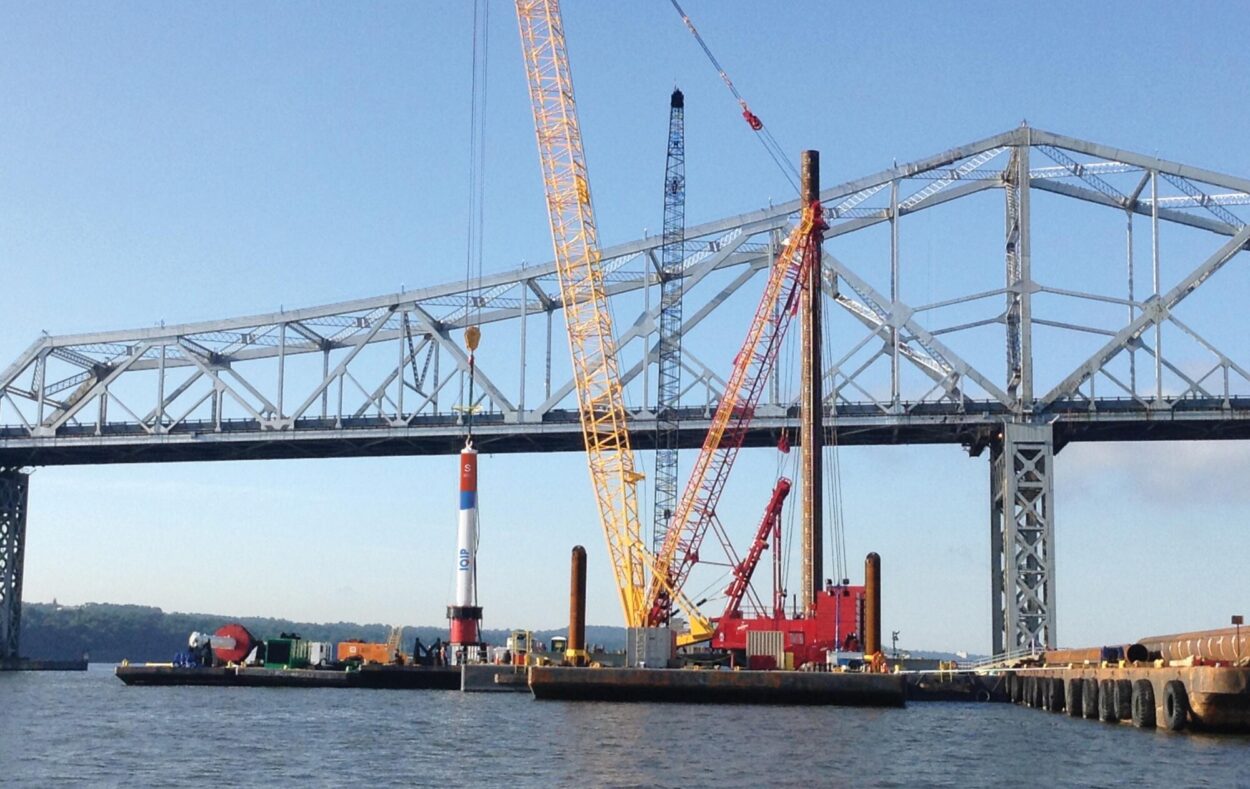

The S-series hydrohammer is engineered for high-impact piling operations in coastal and civil infrastructure projects as well as offshore oil & gas. It delivers the power and reliability required for demanding environments, including jackets, sheet piles, combi walls, and heavy foundation structures.
The S-Series is ideal for:
The S-Series is ideal for:
With optimised energy transfer and durable design, this impact hammer can work all year round. On top of that the S-Series ensures fast penetration and minimal downtime—reducing installation time and overall project cost.
The S-series offers proven reliability, high uptime, and flexibility across multiple markets—making it a trusted solution for contractors working in offshore energy, marine construction, and civil engineering.
Combining the S-Series hydrohammer with a F-series or Z-series vibro hammer offers an optimised installation approach that maximises efficiency across varying soil conditions. The vibro hammer enables rapid initial penetration in suitable soils, while the S-series delivers the high-impact energy required to drive piles to final depth and ensure bearing capacity.
A hydraulic impact hammer, such as the Hydrohammer is used to drive piles into the ground by generating controlled, high-energy impacts. It works by lifting a heavy steel ram using hydraulic pressure and then releasing it to strike the pile.
This process consists of three steps:
Modern hydraulic hammers allow precise control over:
This makes them ideal for offshore wind foundations, oil & gas structures, and civil piling projects, where accuracy and performance are critical.
The key difference between a drop hammer and a hydraulic hammer lies in control, efficiency, and suitability for modern projects.
Drop Hammer
Hydraulic Impact Hammer (Hydrohammer®)
As a result, hydraulic hammers are the preferred solution for offshore wind, oil & gas, and heavy civil infrastructure, where performance and precision are essential. Fun fact: the Hydrohammer® can even work on the moon!
