F-series - IQIP

Engineered for high-impact performance

Enhanced efficiency

Designed for optimized driving with minimal adjustments.

Proven and trusted

Consistent performance thanks to trusted technology, proven over decades.

Versatile power

Strong continuous energy allows pile penetration in a wide variety of ground conditions.

Optimized and consistent vibration

Fixed eccentric moment range: 46 – 300 kgm.

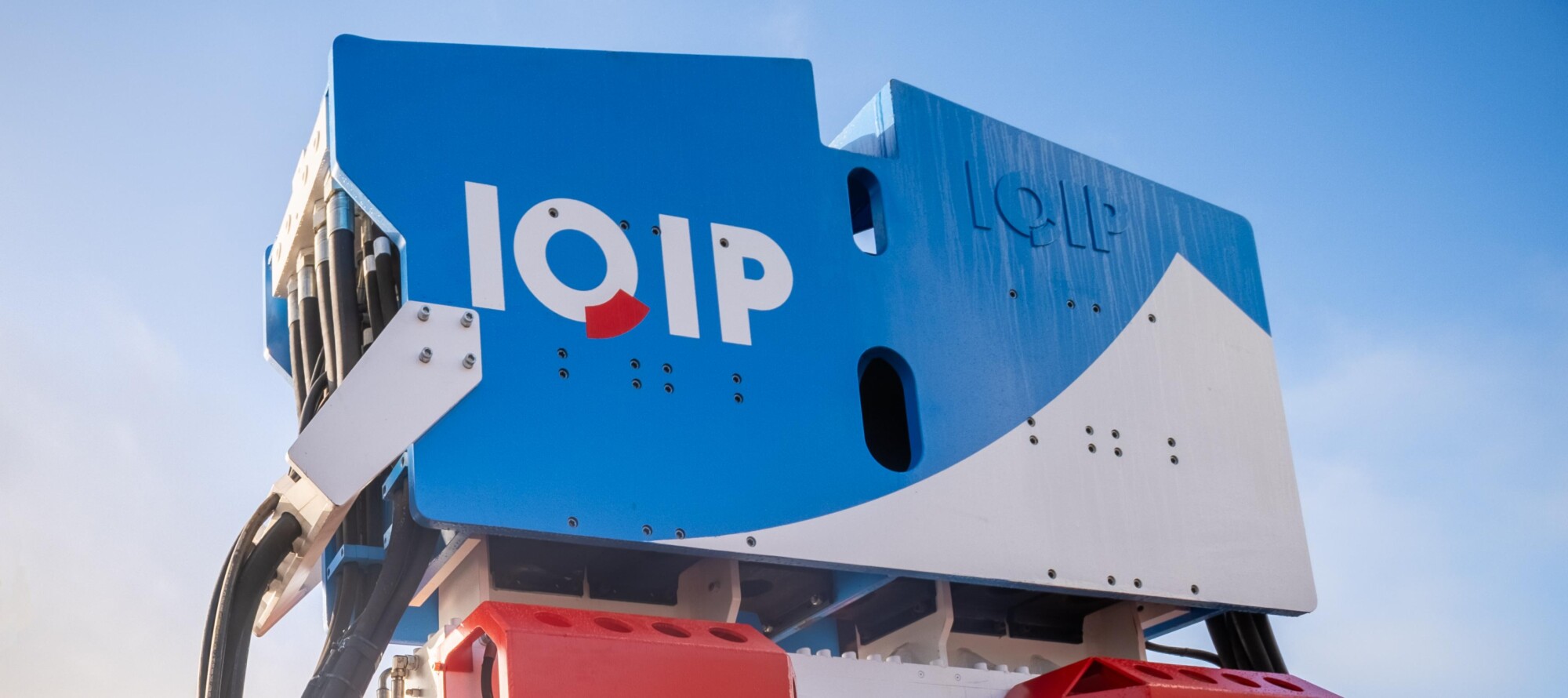

F-series: the go-to high-impact performance solution

IQIP’s F-series fixed moment vibratory hammers offer high-impact performance, maximum efficiency, and perfect integration with our field-proven Hydrohammer. The F-series’ constant amplitude and frequency ensures continuous steady energy delivery and superior driving performance in uniform soil conditions.

		F4	F6	F8	F10
Eccentric moment	kgm	46	80	125	300
Frequency	rpm	1600	1550	1480	In development
Centrifugal force	kN	1291	2108	3003	In development
Amplitude with clamp	mm	18	18	20	In development
Amplitude without clamp	mm	22	25	25	In development
Max. static line pull	kN	730	730	1100	In development
Recommended hydrohammer		S-150	S-280	S-500	S-800
Recommended powerpack		P-525	P-800	2x P-800	2x P-1500

F10

Eccentric moment

kgm

125

300

Frequency

rpm

1600

1550

1480

In development

Centrifugal force

1291

2108

3003

In development

Amplitude with clamp

In development

Amplitude without clamp

In development

Max. static line pull

730

1100

In development

Recommended hydrohammer

S-150

S-280

S-500

S-800

Recommended powerpack

P-525

P-800

2x P-800

2x P-1500

Hydraulic clamps

Two types for a wide range of pile types and sizes

IQIP offers universal clamps and caisson clamps for use with our vibratory hammers in a variety of applications.

Secure connection
A highly reliable piston locking system provides a safe, robust link between vibratory hammer and pile

Durable construction
Crafted from high-strength alloy cast steel for superior performance and longevity

High-pressure operation
Operates with pressured oil up to 350 bar, delivering reliable clamping force

Universal clamps
Drive or extract sheet piles and beams efficiently

Caisson clamps
Drive and extract tube piles accurately and securely

A combination you can build on

IQIP’s brand-new vibratory hammer is the perfect match for our proven Hydrohammer® S-series, as used in the most demanding applications worldwide.

Fully integrated Vibro-Hydrohammer combination for the most demanding foundation projects
Consistent, powerful, reliable pile driving
Robust design for high efficiency and precision
Reduced wear and tear
Minimized maintenance needs
Maximized uptime and on-site productivity
