WHAT IS PULSE?

ADD-ON TO THE STANDARD HAMMER

PULSE®, which is an add-on to the Hydrohammer®, is positioned between pile driving hammer and sleeve and dampens the impact and noise with two hydraulic pistons. The volume in between the pistons can be filled with liquid which controls the impact characteristic reducing noise at the source. Resulting in less noise affecting marine life.

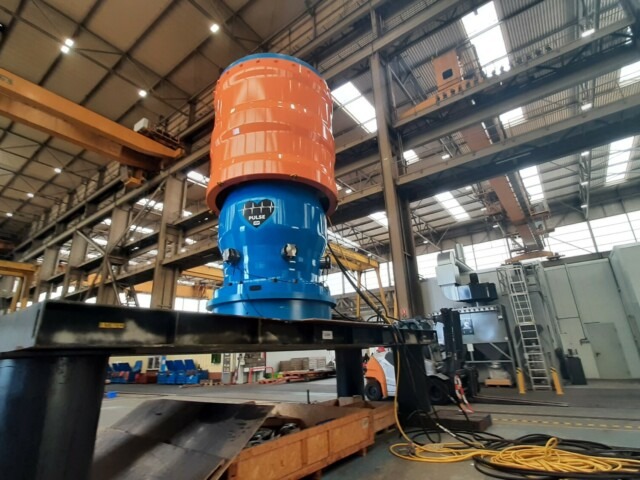

PULSE® addon hydrohammer

MITIGATE NOISE SMARTER WITH PULSE

Pulse is a dampening system (add-on) that will be positioned between a hydraulic hammer (Hydrohammer) and its sleeve. It reduces noise significantly at the source and it creates an environmentally friendly installation. PULSE has been nominated for the Offshore Energy Awards 2019 in the category: Best innovation.

WHY PULSE?

ENERGY EFFICIENT AND ADAPTABLE

Due to its placement, PULSE can easily be combined with other underwater noise mitigating measures. One such is IQIP’s Integrated Monopile Installer, which directly mitigates noise by shielding the pile with a double-walled steel tube into which a bubble curtain can be fed. In most cases, the combination of those two systems would eliminate the need for a Big Bubble Curtain (BBC).

SECURE INSTALLATION

The liquid between the pistons can be drained to transform the system into a conventional Hydrohammer. A PULSE system without any liquid in the volume between the top and bottom piston corresponds to PULSE in zero-mode while the maximum mode features a fully filled liquid volume. This means the system eliminates the need for the safety margins a pre-set system would necessitate; instead, it can adjust to ensure maximum noise reduction and optimum drivability of the pile in different locations and soil strengths.



RECENT DEVELOPMENTS AROUND PULSE

PULSE has been successfully deployed on several offshore wind installation projects, including Arcadis Ost 1, where full scale testing has demonstrated its effectiveness. In the future IQIP sees the PULSE system developed in sizes compatible with all IQIP hammers in the Offshore Wind, Oil & Gas and Coastal & Civil Market. PULSE is one of several IQIP products that further an environmentally safe, legally compliant, and economically sound pile installation. If you want to read more about this, check out the pages of our Integrated Monopile InstallerNoise Reduction System and EQ-Piling Technology.

PULSE® example2

LET’S BUILD TOGETHER AND WORK ON YOUR NEXT PROJECT

We can support you with providing our PULSE, services and matching equipment like Hydrohammer, sleeves, hoses, umbilical and hydraulic winches and powerpacks. Our service engineers are available 24/7 for you when you need support, maintenance, or spare parts for your Hydrohammer. This will be carried out manually or by remote controlling.

If you want more information about PULSE, do not hesitate to contact us.

Frequent Asked Questions

Is PULSE Suitable for my project?

Looking for a way to reduce noise levels in water and air during installation which allows you to meet legislation regardless to increasing pile sizes and installation energy? Our PULSE technique got you covered!

For a tailored advice do not hesitate to contact us!

We know that your projects take place in challenging environments globally, and sometimes, you need the support and guidance of a partner. That’s why we are here to support you. We provide high-quality services all around the world with personal assistance through our 24/7 service for all our customers. It doesn’t matter what environment you’re working in, or where your project is located, we will be ready to help you and offer you a solution. This means that in case of a breakdown, our service team will be ready to provide you with the most appropriate solution.

Piling for offshore installations in Europe is restricted by precautionary regulations for underwater noise and its effect on sea life. This limitation during construction increases the cost price. IQIP has found a way for you to enlarge your installation window and reduce costs with innovative technology for effective noise mitigation. For more information on noise mitigation challenges and solutions see this video: Noise mitigation challenges and solutions in Offshore Wind – YouTube
